Features:
• Automatically advances log each time to desired preset length & performs the cut
• Automatically pushes block to splitting chute, centers wedge & performs the split
• Program diameter size to raise wedge and split in half vs multi-wedge
• Cuts and splits simultaneously for maximum efficiency
• Operator loads the deck with the optional log loader & advances the log deck to
send the next log to the processor, everything else processes automatically
• Safest machine, when the safety covers are opened, all functions are stopped
• Electro hydraulic controls for manual operation
Performance:
• ONE operator with ONE machine can produce 3 plus cords per hour
• Splitter cycle time 3-5 seconds with dual ram system

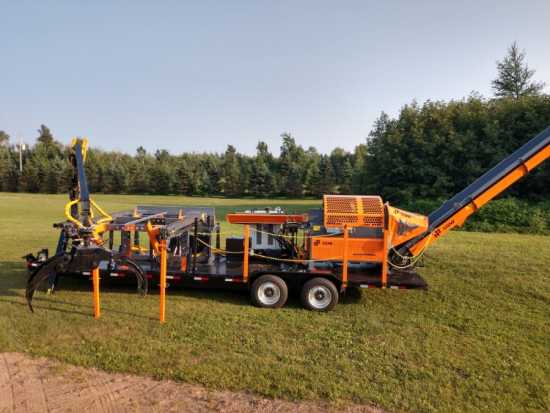

• 16.4’ hydraulically telescoping outfeed conveyor

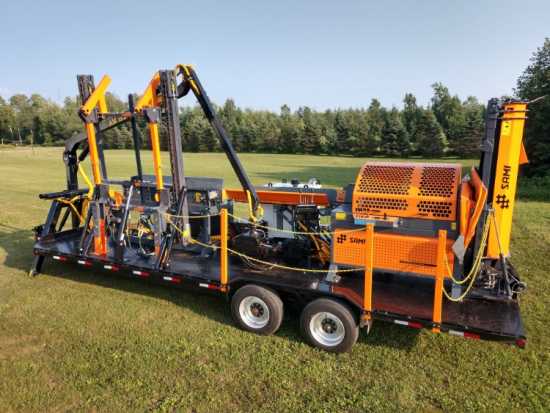

• 7.5’ hydraulic 2 strand log deck, with hydraulic lift for transport
• 6.5’ roller infeed conveyor with belt infeed on AutoChopper
• Maximum Log Length: 12’
• Maximum Log Diameter: 17”
• Splitting Chute: 20”
• Splitting Force: 20.4 tons
• 40 hp Kohler KDI turbo diesel
• Dual hydraulic pumps
• .404 saw chain
Options:

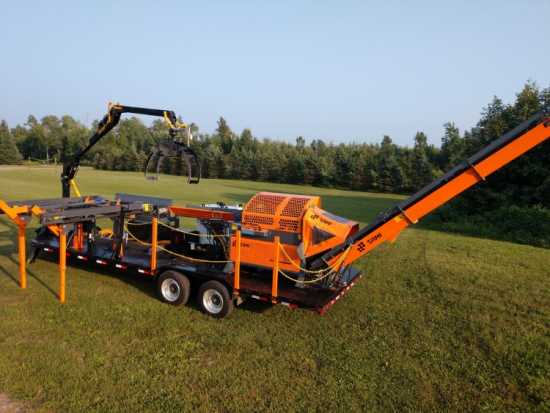

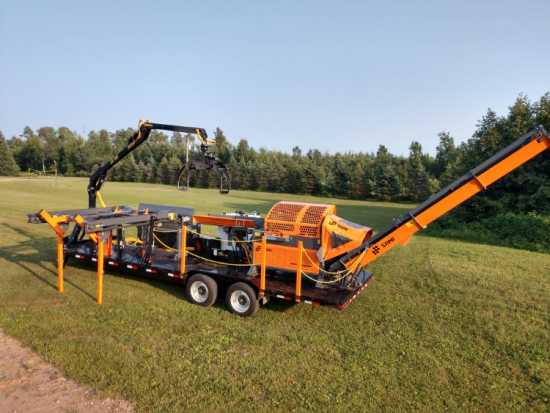

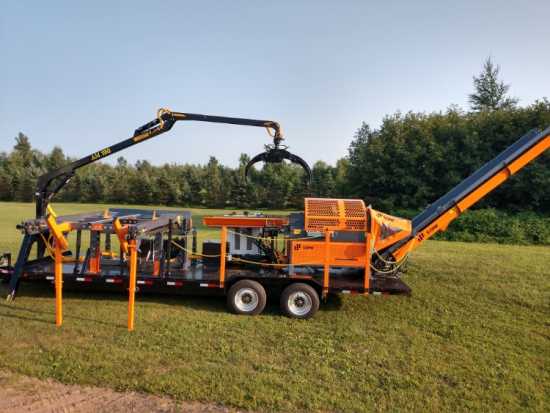

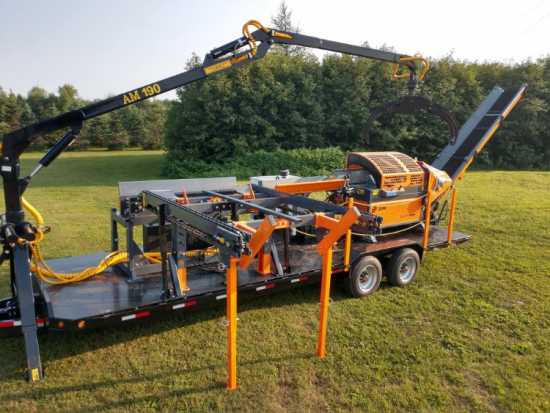

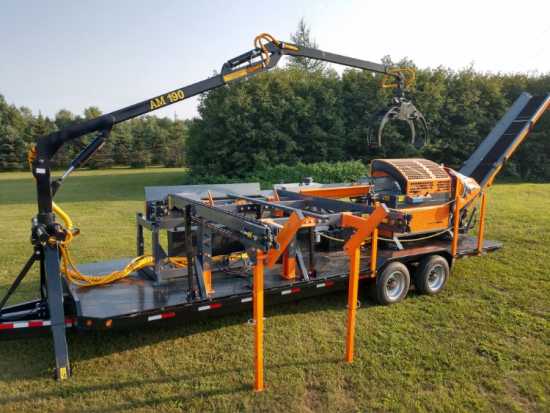

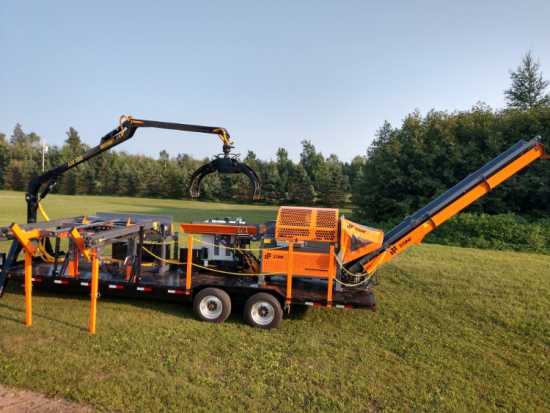

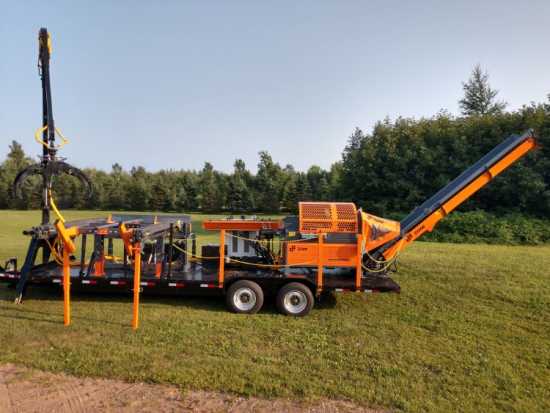

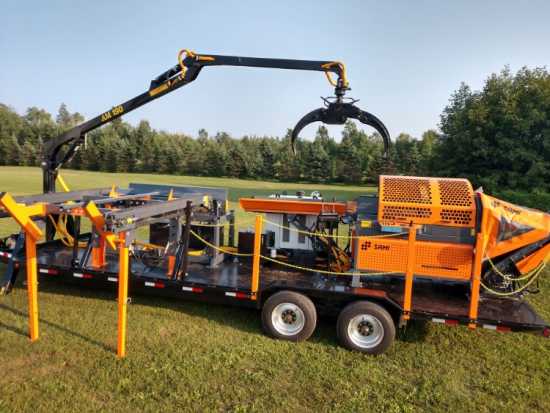

• Log loader with 19’ reach & 48” grapple, requires 56 hp Kohler KDI turbo diesel
• High speed axial piston saw motor
• 2/4, 2/6, 2/8 way wedges
• Hydraulically slewing outfeed conveyor
• 480V electric units available
• Stationary Full AutoFactory = AutoSorter + AutoChopper + 20’ 3 strand live deck
